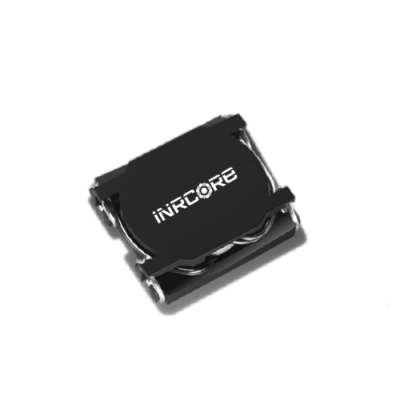

PL1435

SMT Power Inductor – SLIC Series

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1435T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 17.02 × 9.91 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

DCR (mohms)

27.2

Inductance (µH)

16.1

Core Loss Factor

4.52E-10

Rated Current (A)

5.1

Operating Temperature

-40°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Height (mm)

9.91

The PL1435 SMT Power Inductor, part of the SLIC Series, is engineered for efficient power management with a shielded drum core construction. Its 16.1 µH inductance and 5.1 A rated current enable stable performance across an operating temperature range of -40°C to +130°C, ensuring reliable integration into compact surface-mount designs with a 9.91 mm height.

NOTE: Data/Specifications are subject to change without notice.
