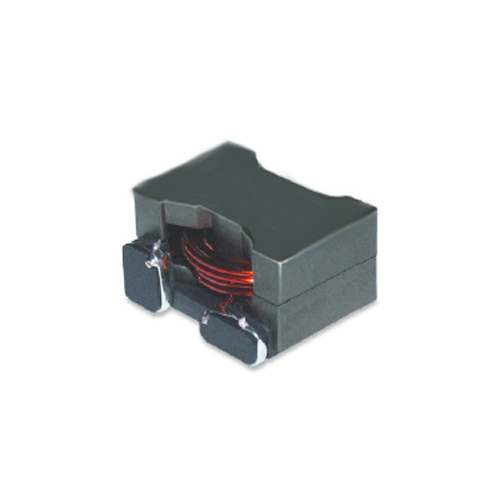

SMT Power Inductor
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 22.23 × 19.05 × 12.2 mm |
|---|---|
| Mounting | SMT |
| Construction Type | SMT Toroid |
| DCR (mohms) | 5.8 |
| Heating Current (A) | 12.5 |
| Inductance (µH) | 10.2 |
| Saturation Current TYP (A) | 16 |
| Core Loss Factor | 206 |
| Rated Current (A) | 12.5 |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -55°C to +130°C |
| Finish | Tin/Lead (Sn63/Pb37) |
| Packaging | Bulk |
| RoHS Compliant | No |
| Height (mm) | 12.2 |
The PL2058 SMT Power Inductor, manufactured by iNRCORE, offers reliable performance in power applications. With a compact size (12.2mm height) and SMT mounting, it is suitable for various designs. Key features include a 10.2 µH inductance, 12.5A heating current, and a low DCR of 5.8 mohms, ensuring efficient operation. The inductor operates within a wide temperature range (-55°C to +130°C) and is RoHS compliant.
NOTE: Data/Specifications are subject to change without notice.
