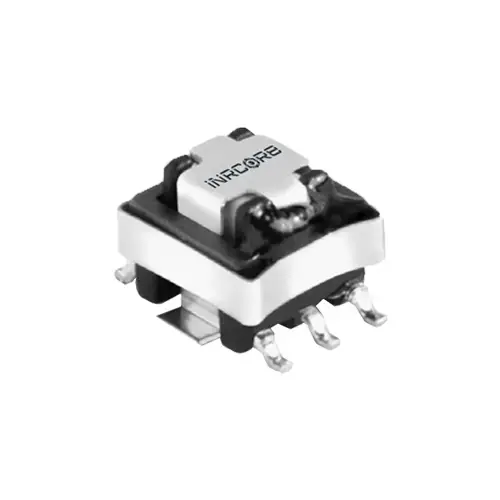

PL3141

Audio Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3141T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 18 × 14 × 10.5 mm
Mounting

SMT

Construction Type

SMT Toroid

DCR (mohms)

55

DCR MAX (mΩ) Primary

55

Turns Ratio

1:01

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +85°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Height (mm)

10.5

Applications

Central Office Switches, DLC Systems, PBX, Telephone Sets

The PL3141 Audio Transformer is a robust SMT Toroid designed for reliable performance in critical communication infrastructure. With a DCR of 55 mohms and a 1:01 turns ratio, it offers consistent electrical characteristics. Its wide operating temperature range of -40°C to +85°C and Tin/Lead finish ensure durability in demanding environments, making it suitable for applications such as Central Office Switches, DLC Systems, PBX, and Telephone Sets.

NOTE: Data/Specifications are subject to change without notice.
