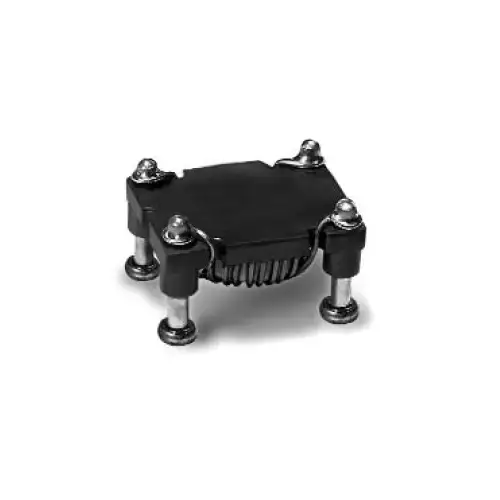

SMT Power Inductor – Toroid POGO 40 Series
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Weight | 4.62 g |
|---|---|
| Dimensions | 18.42 × 11.43 × 15.24 mm |
| Mounting | SMT |
| Construction Type | SMT Toroid |
| Package | POGO 40 |
| Parallel Inductance (µH) | 760% |
| Parallel Rated Current (A) | 5.7 |
| Parallel DCR (mohms) | 20.99 |
| Series Inductance (µH) | 30.6 |
| Series Rated Current (A) | 2.85 |
| Series DCR (mohms) | 84 |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +130°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
The PL8704NL is a robust SMT Power Inductor from iNRCORE’s POGO 40 Series, engineered for reliable surface-mount applications. It offers flexible inductance options for both parallel and series configurations, along with specified rated currents and DCRs, making it a versatile component for various power management needs within an operating temperature range of -40°C to +130°C.
NOTE: Data/Specifications are subject to change without notice.
