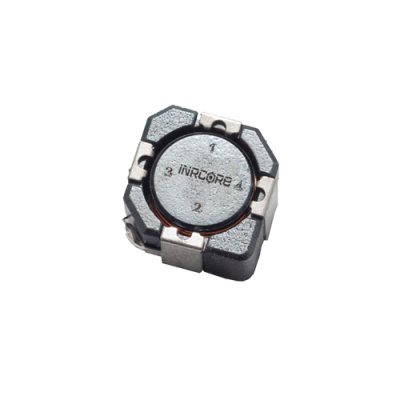

PL9112

Shielded Drum Core

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL9112T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 2.5 g
Dimensions 10.5 × 10.5 × 6.3 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

Inductance (µH)

17.6

Rated Current (A)

3.2

DCR TYP (mΩ)

35

DCR MAX (mΩ)

45

Saturation Current TYP (A)

3.2

Heating Current (A)

3.2

Moisture Sensitivity Level

1.00E+00

Operating Temperature

-55°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

The PL9112 is a shielded drum core inductor designed for surface mount applications, offering an inductance of 17.6 µH and capable of handling a rated current of 3.2 A. With typical DCR values of 35 mΩ, this component ensures efficient power conversion across a broad operating temperature range of -55°C to +130°C. Its robust construction and Tin/Lead finish contribute to reliable performance in various electronic designs.

NOTE: Data/Specifications are subject to change without notice.
