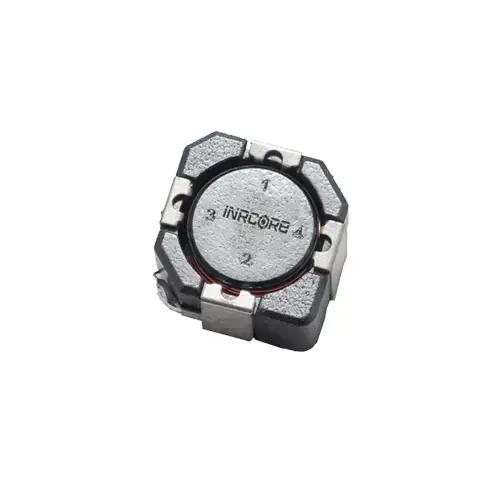

PL9303

Shielded Drum Core

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL9303T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 2.5 g
Dimensions 10.41 × 10.41 × 4 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

Inductance (µH)

1.9

Rated Current (A)

5.8

DCR TYP (mΩ)

8.4

DCR MAX (mΩ)

10.9

Saturation Current TYP (A)

6.15

Heating Current (A)

5.8

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

The PL9303 is a shielded drum core inductor designed for power applications. It features a compact size with dimensions of 10.41mm in length and width, and a height of 4mm. This inductor offers an inductance of 1.9µH, a rated current of 5.8A, and a maximum DCR of 10.9 mΩ. It is constructed with a SHLD DRUM CORE and is suitable for operating temperatures ranging from -55°C to +130°C. The PL9303 is RoHS compliant.

NOTE: Data/Specifications are subject to change without notice.
