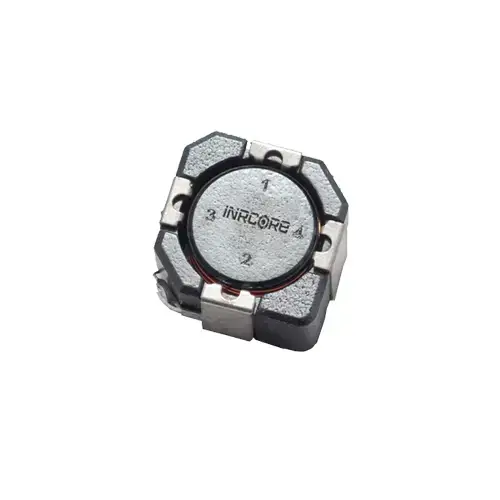

PL9414

Shielded Drum Core

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL9414T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 10.41 × 10.41 × 3.35 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

Inductance (µH)

48

Rated Current (A)

1.25

DCR TYP (mΩ)

139

DCR MAX (mΩ)

18800%

Saturation Current TYP (A)

1.25

Heating Current (A)

1.45

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Termination

±20%

Packaging

Bulk

RoHS Compliant

No

This shielded drum core inductor, with a 48 µH inductance and a 1.25 A rated current, offers reliable power management in a compact SMT package. Its robust construction supports an operating temperature range of -55°C to +130°C, ensuring stable performance in demanding environments.

NOTE: Data/Specifications are subject to change without notice.
