PL9519

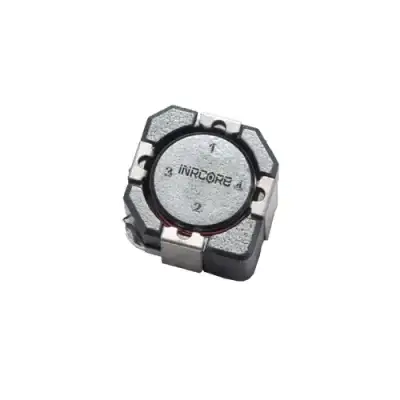

Shielded Drum Core

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL9519T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 6.5 × 6.5 × 3.1 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

Inductance (µH)

9:21

Rated Current (A)

0.4

DCR TYP (mΩ)

417

DCR MAX (mΩ)

52000%

Saturation Current TYP (A)

100

Heating Current (A)

0.66

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Termination

±20%

Packaging

Bulk

RoHS Compliant

No

This shielded drum core inductor offers reliable performance for power applications, featuring a compact SMT design with a 6.5mm length and width, and a 3.1mm height. It provides an inductance of 85.39 µH with a rated current of 0.4 A, and has a typical DCR of 417 mΩ. Designed for a wide operating temperature range of -55°C to +130°C, it is available in bulk packaging with a Tin/Lead finish.

NOTE: Data/Specifications are subject to change without notice.
