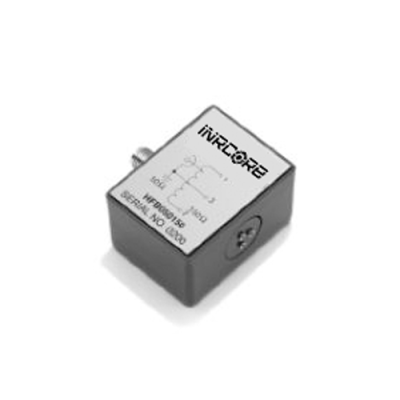

High Frequency Balun Adapter
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 38.354 × 28.956 × 22.86 mm |
|---|---|
| Mounting | Chassis |
| Number of Channels | Single |
| Data Rate (Mbps) | 1485 |
| Unbalanced Impedance (Ω) | 50 |
| Balanced Impedance (Ω) | 150 |
| Insertion Loss MAX (dB) | 2 |
| Return Loss (dB) | 15 |
| Operating Temperature | -55°C to +125°C |
| Moisture Sensitivity Level | 1 |
| RoHS Compliant | No |
| Packaging | Bulk |
NOTE: Data/Specifications are subject to change without notice.
