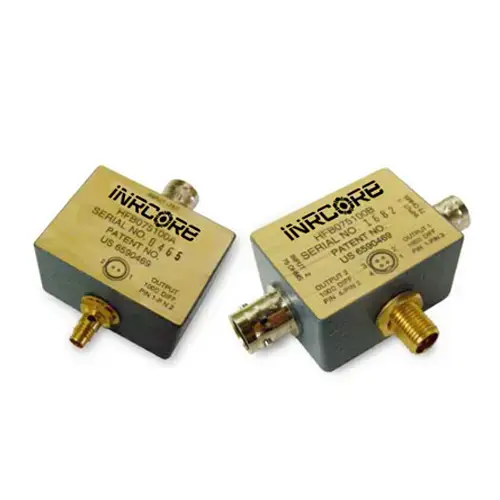

High Frequency Balun Adapter
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 38.35 × 28.96 × 22.86 mm |
|---|---|
| Mounting | Chassis |
| Number of Channels | Single |
| Data Rate (Mbps) | 1485 |
| Unbalanced Impedance (Ω) | 75 |
| Balanced Impedance (Ω) | 100 |
| Insertion Loss MAX (dB) | 2 |
| Transmit Jitter MAX (pS) | 110 |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -55°C to +125°C |
| Moisture Sensitivity Level | 1 |
| RoHS Compliant | No |
| Packaging | Bulk |
The High Frequency Balun Adapter from iNRCORE provides a chassis-mountable solution for signal applications. With a data rate of 1485 Mbps, it offers a balanced impedance of 100Ω and an unbalanced impedance of 75Ω. This adapter has a maximum insertion loss of 2 dB and can withstand operating temperatures from -55°C to +125°C.
NOTE: Data/Specifications are subject to change without notice.
