HFB075100D

High Frequency Balun Adapter

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. HFB075100DT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 33.57 × 16.12 × 19.3 mm
Mounting

Chassis

Number of Channels

Single

Data Rate (Mbps)

1485

Unbalanced Impedance (Ω)

75

Balanced Impedance (Ω)

100

Insertion Loss MAX (dB)

2

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Moisture Sensitivity Level

1

RoHS Compliant

No

Packaging

Bulk

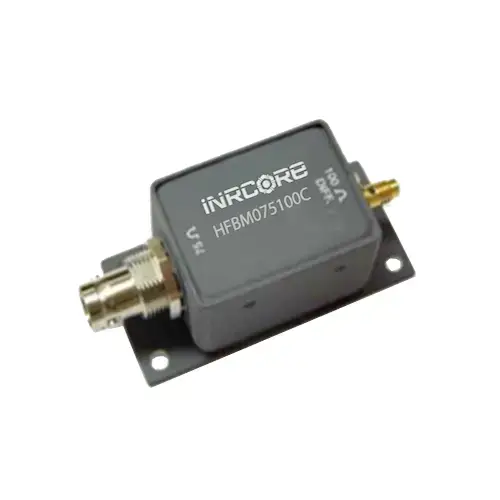

The High Frequency Balun Adapter (HFB075100D) from iNRCORE is designed for signal transmission. This adapter offers a 75-ohm unbalanced impedance and a 100-ohm balanced impedance, with a data rate up to 1485 Mbps. It is suitable for various applications, offering a wide operating temperature range from -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
