HFB3GL075100A

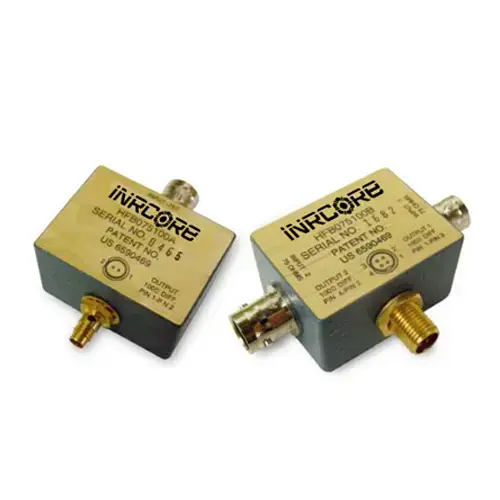

High Frequency Balun Adapter

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. HFB3GL075100AT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 38.354 × 28.956 × 22.86 mm
Mounting

Chassis

Data Rate (Mbps)

2973

Unbalanced Impedance (Ω)

75

Balanced Impedance (Ω)

100

Insertion Loss MAX (dB)

1

Operating Temperature

-55°C to +125°C

Moisture Sensitivity Level

1

RoHS Compliant

No

Packaging

Bulk

The High Frequency Balun Adapter offers a robust solution for signal transmission, providing efficient impedance transformation between 75 and 100 ohms. With a compact design, this adapter is ideal for applications requiring reliable performance in a wide operating temperature range from -55°C to +125°C. It is a valuable component for ensuring signal integrity in various electronic systems.

NOTE: Data/Specifications are subject to change without notice.
