HFB3GL075150B

High Frequency Balun Adapter

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. HFB3GL075150BT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 38.354 × 28.956 × 22.86 mm
Mounting

SMT

Data Rate (Mbps)

2973

Unbalanced Impedance (Ω)

75

Balanced Impedance (Ω)

150

Insertion Loss MAX (dB)

1

Operating Temperature

-55°C to +125°C

Moisture Sensitivity Level

1

RoHS Compliant

No

Packaging

Bulk

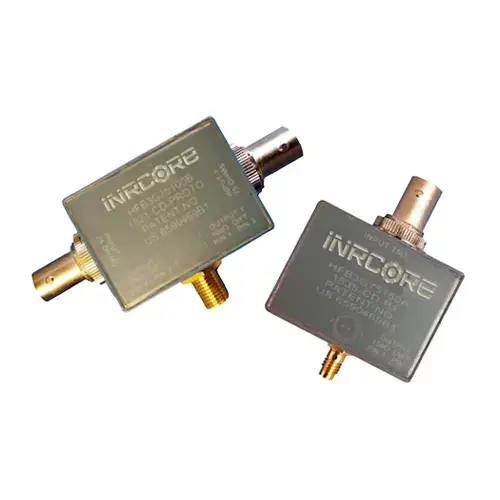

The HFB3GL075150B is a high-frequency balun adapter designed for signal applications, offering a robust solution for impedance matching from 75Ω unbalanced to 150Ω balanced. With SMT mounting and a broad operating temperature range of -55°C to +125°C, this iNRCORE product provides reliable performance for various demanding electronic systems, while maintaining a low insertion loss of 1dB maximum.

NOTE: Data/Specifications are subject to change without notice.
