High Frequency Balun Adapter
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 64.77 × 29.464 × 27.94 mm |
|---|---|
| Mounting | Chassis |
| Number of Channels | Single |
| Data Rate (Mbps) | 1485 |
| Unbalanced Impedance (Ω) | 75 |
| Balanced Impedance (Ω) | 100 |
| Insertion Loss MAX (dB) | 2 |
| Operating Temperature | -55°C to +125°C |
| Moisture Sensitivity Level | 1 |
| RoHS Compliant | No |
| Packaging | Bulk |

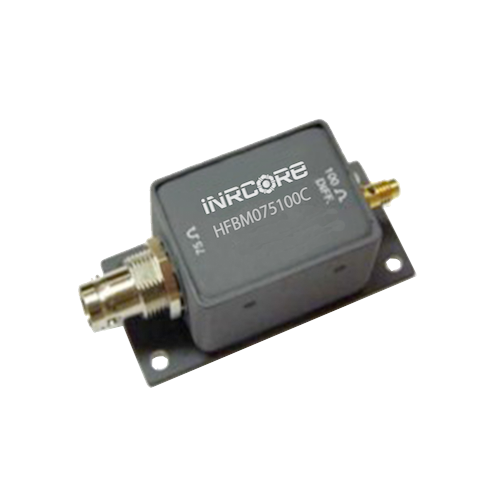

The High Frequency Balun Adapter, model HFBM075100C, provides a crucial interface for signal transmission, converting unbalanced 75-ohm impedance to balanced 100-ohm impedance. This adapter ensures efficient data transfer at a data rate of 1485 Mbps with minimal insertion loss (2 dB maximum), operating reliably within a wide temperature range (-55°C to +125°C). Its compact design, with dimensions of 64.77mm in length, 29.464mm in width, and 27.94mm in height, makes it suitable for various applications.
NOTE: Data/Specifications are subject to change without notice.
