T-050078NL

High Frequency SMT Balun Adapter

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. T-050078NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 7.874 × 6.477 × 5.334 mm
Mounting

SMT

Number of Channels

Single

Data Rate (Mbps)

1485

Unbalanced Impedance (Ω)

50

Balanced Impedance (Ω)

78

Insertion Loss MAX (dB)

2

Return Loss (dB)

12

Operating Temperature

-40°C to +85°C

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

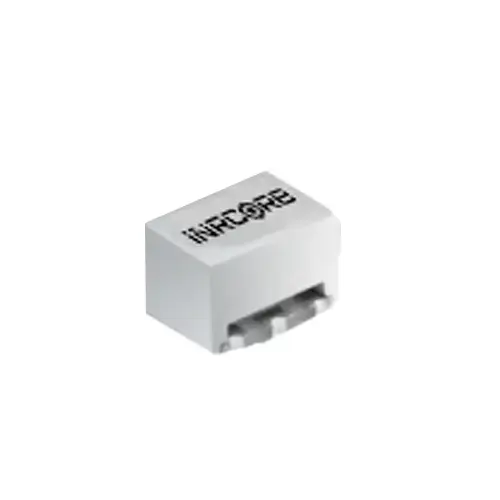

The T-050078NL is a High Frequency SMT Balun Adapter from iNRCORE, designed for surface mount applications. This single-channel balun supports a data rate of 1485 Mbps with an unbalanced impedance of 50Ω and a balanced impedance of 78Ω. It offers reliable performance with an insertion loss maximum of 2dB and a return loss of 12dB, operating across a temperature range of -40°C to +85°C, and is RoHS compliant.

NOTE: Data/Specifications are subject to change without notice.
