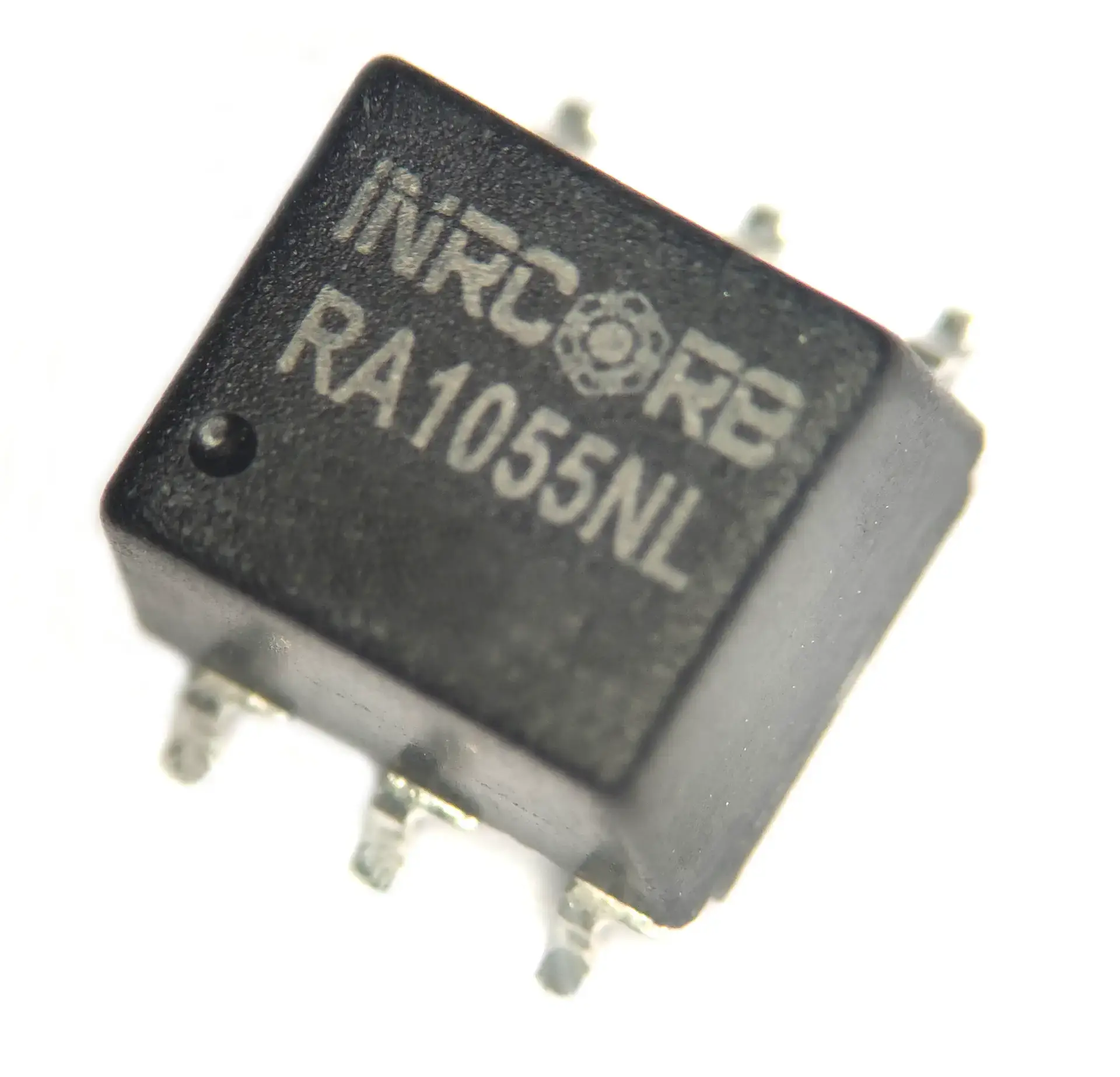

RA1055NLT

Automotive BMS Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. RA1055NLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 7.87 × 7 × 5.72 mm
Mounting

SMT

Number of Channels

Single

Turns Ratio

1CT:1CT

Inductance MIN (µH)

150

Inductance MAX (µH)

370

Insertion Loss MAX (dB)

0.3

Return Loss (dB)

20

DWV (VDC)

4300

Insulation

Functional

Include CMC?

Yes

Operating Temperature

-40°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

1

RoHS Compliant

Yes

Packaging

T&R

Grade

Automotive

PoE Rating

N/A

Features

AEC-Q200 Compliance

Applications

Automotive

The RA1055NLT is an automotive-grade BMS transformer from iNRCORE, designed for signal applications. This SMT-mountable transformer features a 1CT:1CT turns ratio, an inductance range of 150 to 370 µH, and a 4300 VDC DWV. It is built to withstand -40°C to +125°C temperatures and is AEC-Q200 compliant, providing reliable performance in demanding automotive environments.

NOTE: Data/Specifications are subject to change without notice.
