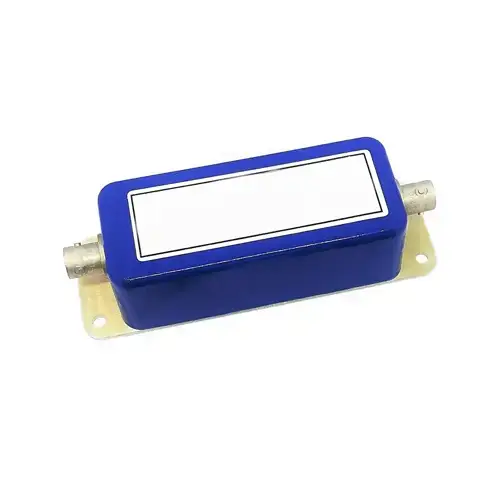

DBCL-34002

MIL-STD-1553 Data Bus Coupler

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. DBCL-34002T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 180 g
Dimensions 117.348 × 41.91 × 30.48 mm
Mounting

Chassis

Number of Stubs

1

Isolation Resistor Value (Ω)

58.5

Impedance (Ω)

> 3000

Droop MAX

≤20%

CMR MIN (dB)

≥ 45

Frequency Range (No Load)

75 kHz to 1 MHz

Connector Type

BJ-770

Operating Temperature

-40°C to +85°C

Termination Resistor

No

RoHS Compliant

No

Packaging

Bulk

Data/Specifications are subject to change without notice.
