MIL-STD-1553 Data Bus Coupler
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Weight | 180 g |
|---|---|
| Dimensions | 117.348 × 41.91 × 30.48 mm |
| Mounting | Chassis |
| Number of Stubs | 3 |
| Isolation Resistor Value (Ω) | 58.5 |
| Impedance (Ω) | > 3000 |
| Droop MAX | ≤20% |
| CMR MIN (dB) | ≥ 45 |
| Frequency Range (No Load) | 75 kHz to 1 MHz |
| Connector Type | BJ-770 |
| Operating Temperature | -40°C to +85°C |
| Termination Resistor | No |
| RoHS Compliant | No |
| Packaging | Bulk |

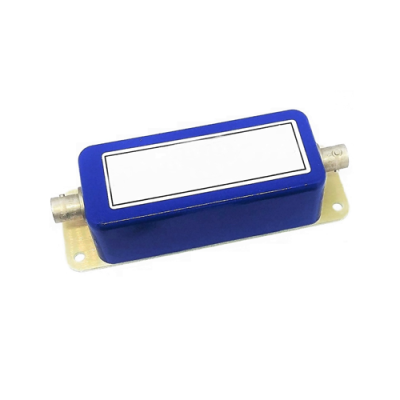

The MIL-STD-1553 Data Bus Coupler, DBCL-54002, manufactured by iNRCORE, provides a robust solution for data bus coupling needs. This coupler features a chassis mount, 3 stubs, and an isolation resistor value of 58.5Ω, ensuring reliable performance in demanding environments. With an operating temperature range of -40°C to +85°C, the DBCL-54002 offers a dependable and efficient solution.
NOTE: Data/Specifications are subject to change without notice.
