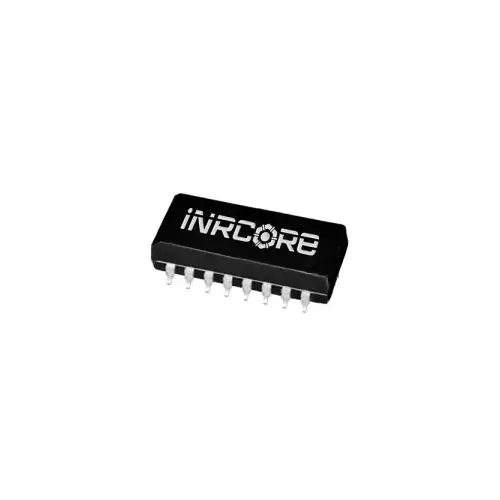

T-531SCT

CopperheadTM High Speed Dual Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. T-531SCTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1 g
Dimensions 12.95 × 7.62 × 4.57 mm
Mounting

SMT

Turns Ratio

1CT:1CT

Number of Channels

Dual

Data Rate (Mbps)

531

Primary Inductance (µH)

1, 6

Rise Time MAX (nSec)

0.325

DCR MAX (mΩ)

0.2

HiPot (VRMS)

1500

Insertion Loss MAX (dB)

2

Moisture Sensitivity Level

3

RoHS Compliant

No

Operating Temperature

-55°C to +125°C

Packaging

Bulk

Height (mm)

4.57

The T-531SCT Copperhead High Speed Dual Transformer is a compact, surface-mount solution featuring a 1CT:1CT turns ratio and dual channels, designed for high-speed data isolation with a rate of 531 Mbps. It offers reliable performance across a broad operating temperature range of -55°C to +125°C, ensuring robust signal integrity with a low rise time and minimal DCR. This transformer provides a high isolation voltage of 1500 VRMS, making it suitable for demanding applications where signal integrity and reliable isolation are critical.

NOTE: Data/Specifications are subject to change without notice.
