X-1620NL

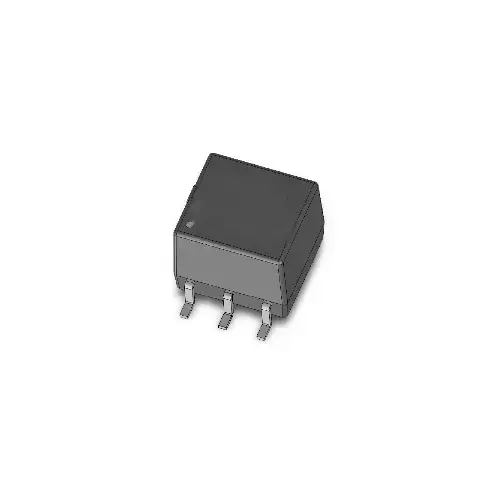

SMT Signal Isolation Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1620NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1.16 g
Dimensions 10.03 × 8.89 × 6.85 mm
Mounting

SMT

Turns Ratio

1CT:1CT

Primary Inductance (µH)

1

DCR MAX (mΩ)

0.8

Leakage Inductance MAX (μH)

1.2

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Operating Temperature

-55°C to +125°C

Packaging

Bulk

Height (mm)

6.85

The X-1620NL SMT Signal Isolation Transformer is a robust component designed for data isolation within signal applications, offering reliable surface-mount technology for efficient integration. Its key specifications, including a 1CT:1CT turns ratio, 1µH primary inductance, and 3000V isolation voltage, ensure consistent performance across a wide operating temperature range of -55°C to +125°C. This RoHS compliant transformer provides essential signal integrity and isolation for demanding electronic designs.

NOTE: Data/Specifications are subject to change without notice.
