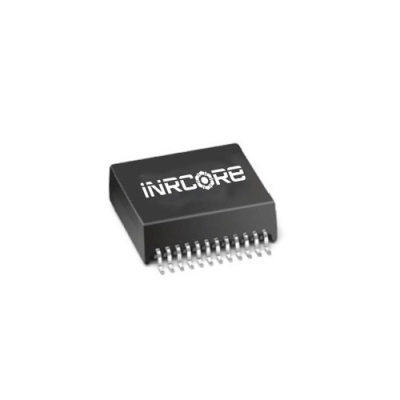

1000B-5001NL

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5001NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 12.45 × 5.97 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The iNRCORE 1000B-5001NL is a robust single and dual port transformer module engineered for 10/100/1000 BASE-T Ethernet applications, offering reliable data transmission at 1000 Mbps. Designed for surface mount technology (SMT) with a compact 24-Pin package, this component ensures stable performance across a wide operating temperature range of -40°C to +85°C, and can be stored in temperatures from -55°C to +125°C. Its Sn100 finish, 1500V isolation voltage, and Mil-Aero grade compliance ensure durability and suitability for demanding environments.

NOTE: Data/Specifications are subject to change without notice.
