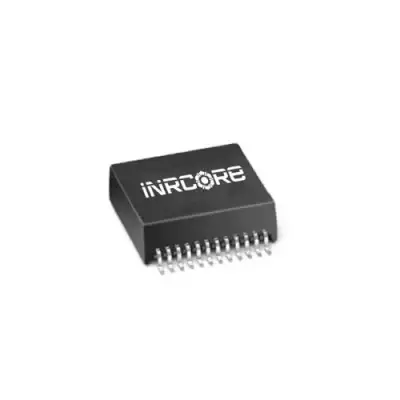

1000B-5001X

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5001XT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 12.45 × 5.97 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 1000B-5001X transformer module, manufactured by iNRCORE, offers reliable signal transmission for Ethernet applications. Its design, with features such as SMT mounting and a wide operating temperature range of -55°C to +125°C, ensures stable performance in diverse environments. This module supports data rates up to 1000 Mbps, making it suitable for high-speed networking needs.

NOTE: Data/Specifications are subject to change without notice.
