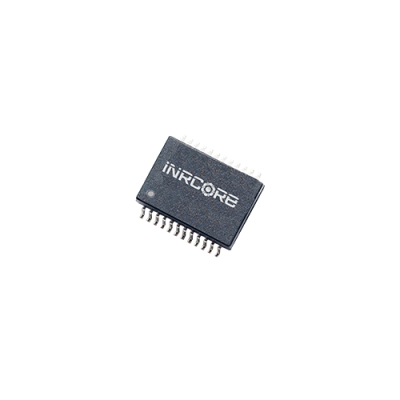

1000B-5002F

10/100 BASE-T Single Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5002FT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 12.45 × 5.97 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The iNRCORE 1000B-5002F (1000B-5002F) is a 10/100 BASE-T Single Port Transformer Module designed for Ethernet applications, offering a 1000 Mbps data rate and 1500V isolation voltage. This SMT, 24-pin package operates from -40°C to +85°C, with a tin/lead finish and a height of 5.97mm. It is a Mil-Aero grade component, featuring a single channel configuration for both RX and TX, and comes in bulk packaging.

NOTE: Data/Specifications are subject to change without notice.
