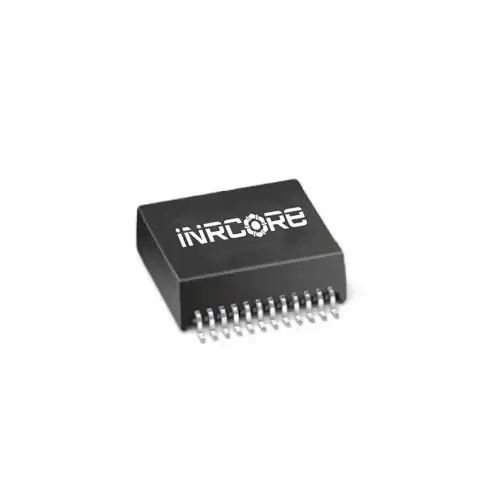

1000B-5003T

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5003TT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 27.94 × 7.62 × 8.64 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

50-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

T&R

Grade

Mil-Aero

PoE Rating

N/A

The iNRCORE 1000B-5003T is a 10/100/1000 BASE-T Single & Dual Port Transformer Module designed for Signal > Ethernet Transformers applications. This SMT package features dual channels, C and T configurations for both RX and TX, a 1000 Mbps data rate, and a 1500V isolation voltage. It comes in a 50-Pin Tin/Lead (Sn63/Pb37) finish, is rated for Mil-Aero grade, and operates from -40°C to +85°C, with a storage temperature of -55°C to +125°C. The module has a Moisture Sensitivity Level of 3 and is packaged in T&R, with dimensions of 27.94mm (Length) x 7.62mm (Width) x 8.64mm (Height). Please note that this product is not RoHS Compliant and has an N/A PoE rating.

NOTE: Data/Specifications are subject to change without notice.
