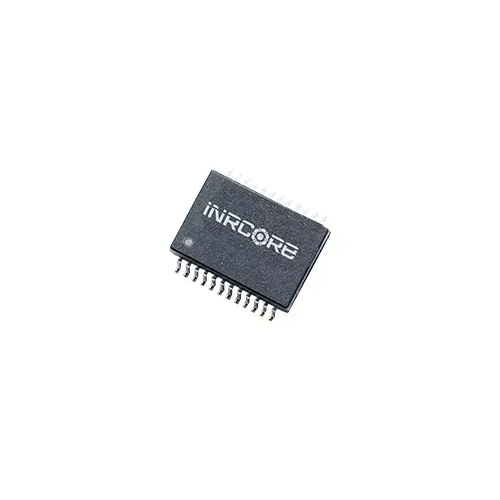

1000B-5009

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5009T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 15.24 × 7.62 × 8.63 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

T

Configuration TX

T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 1000B-5009 transformer module offers a high-performance solution for Ethernet applications, providing reliable signal transmission with dual-channel support. With a data rate of 1000 Mbps and 1500V isolation voltage, it ensures efficient and safe data transfer. Its compact 24-Pin package, along with an operating temperature range of -40°C to +85°C, makes it suitable for various demanding environments.

NOTE: Data/Specifications are subject to change without notice.
