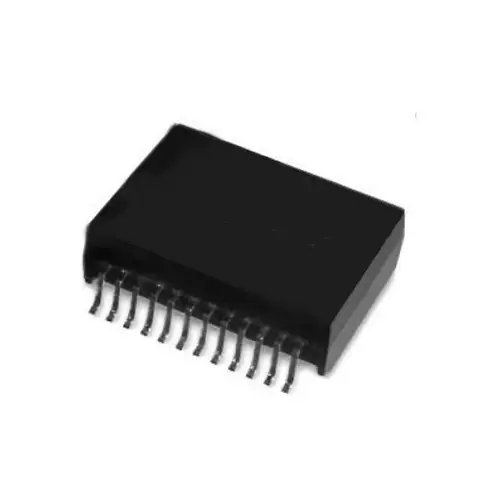

1000B-5010NL

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5010NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.53 × 12.19 × 5.72 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

T,C,S

Configuration TX

T,C,S

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

PoE Rating

PoE

Packaging

Bulk

Grade

Mil-Aero

This 10/100/1000 BASE-T Single & Dual Port Transformer Module from iNRCORE provides reliable signal isolation and efficient data transmission at 1000 Mbps, operating across a wide temperature range of -40°C to +85°C. Its robust design, including SMT mounting and Sn100 finish, ensures consistent performance in demanding environments, making it a suitable component for various applications requiring stable Ethernet connectivity.

NOTE: Data/Specifications are subject to change without notice.
