10/100/1000 BASE-T Single & Dual Port Transformer Module
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 28.07 × 12.45 × 7.49 mm |
|---|---|
| Mounting | SMT |
| Number of Channels | Single |
| Configuration RX | C, S, T |
| Configuration TX | C, S, T |
| Data Rate (Mbps) | 1000 |
| Isolation Voltage | 1500 |
| Package | 48-Pin |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Finish | Tin/Lead (Sn63/Pb37) |
| Moisture Sensitivity Level | 3 |
| RoHS Compliant | No |
| Packaging | Bulk |
| Grade | Mil-Aero |
| PoE Rating | N/A |

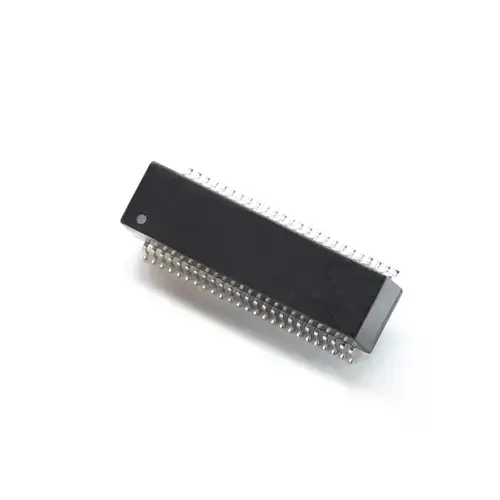

The 1000B-5014 transformer module offers reliable Ethernet connectivity, supporting data rates up to 1000 Mbps. It features a compact design with a small height, making it suitable for various applications. This module is designed to operate in a wide temperature range, ensuring consistent performance in diverse environments.
NOTE: Data/Specifications are subject to change without notice.
