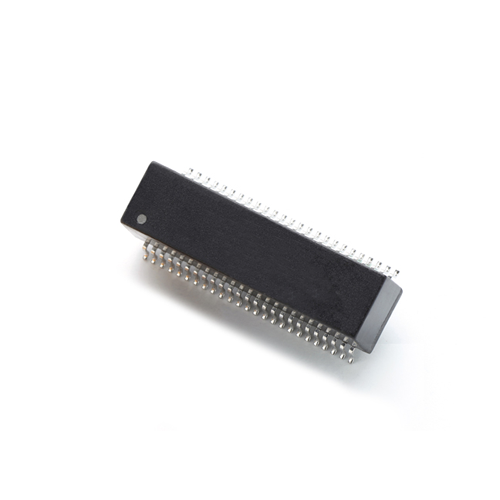

1000B-5014F

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5014FT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 28.07 × 12.45 × 7.49 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

48-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 1000B-5014F is a versatile 10/100/1000 BASE-T Single & Dual Port Transformer Module from iNRCORE, designed for Ethernet applications. This SMT package features single-channel operation with C, S, and T configurations for both RX and TX, and supports a data rate of 1000 Mbps. It offers an isolation voltage of 1500V and operates across a wide temperature range of -40°C to +85°C. With a Tin/Lead (Sn63/Pb37) finish and a Moisture Sensitivity Level of 3, this Mil-Aero grade module is ideal for robust industrial and aerospace applications, supplied in bulk packaging.

NOTE: Data/Specifications are subject to change without notice.
