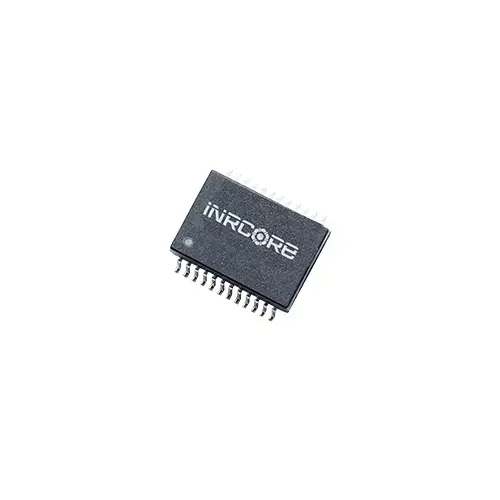

1000B-5016F

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5016FT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 15.24 × 7.87 × 4.14 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The iNRCORE 1000B-5016F is a 10/100/1000 BASE-T Single & Dual Port Transformer Module designed for Signal > Ethernet Transformers applications. This SMT package features single-channel configuration, supports C, S, and T for both RX and TX, and offers a data rate of 1000 Mbps with an isolation voltage of 1500V. It operates within a temperature range of -40°C to +85°C, comes in a 24-Pin package with a Tin/Lead (Sn63/Pb37) finish, and is moisture sensitivity level 3 compliant. The 1000B-5016F is packaged in bulk, is Mil-Aero grade, and measures 4.14mm in height.

NOTE: Data/Specifications are subject to change without notice.
