100B-1018X

10/100 BASE-TX Single Port Transformer Module

100B-1018X
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1018XT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 15.24 × 12.19 × 4.57 mm
Mounting

SMT
Number of Channels

Single
Configuration RX

C, T
Configuration TX

C, S, T
Data Rate (Mbps)

100
Package

12-Pin
Isolation Voltage

1500
Insertion Loss MAX (dB)

1.2
Return Loss (dB)

10, 12, 14, 18
Crosstalk (dB)

38, 40, 44, 48
DM to CM Rejection Ratio (dB) MIN

33, 40, 45
Operating Temperature

-55°C to +125°C
Storage Temperature

-55°C to +125°C
Finish

Tin/Lead (Sn63/Pb37)
Moisture Sensitivity Level

3
RoHS Compliant

No
Packaging

Bulk
Grade

Mil-Aero
PoE Rating

N/A

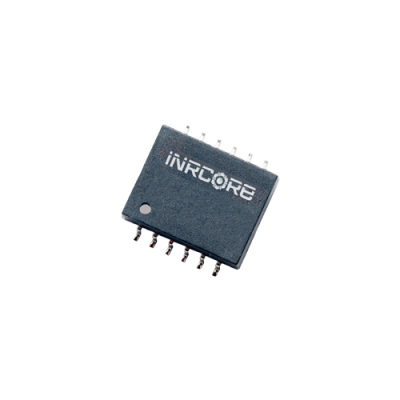

The iNRCORE 100B-1018X (100B-1018X) is a 10/100 BASE-TX Single Port Transformer Module. This SMT-mountable component offers single-channel configuration with C, T for RX and C, S, T for TX, supporting a data rate of 100 Mbps. It features 1500V isolation voltage and is packaged in a 12-Pin form factor with Tin/Lead (Sn63/Pb37) finish. With dimensions of 15.24mm (Length) x 12.19mm (Width) x 4.57mm (Height), it operates and stores within a -55°C to +125°C temperature range. While not RoHS compliant, it has a Moisture Sensitivity Level of 3 and is suitable for Mil-Aero grade applications, available in bulk packaging.
