100B-1022X

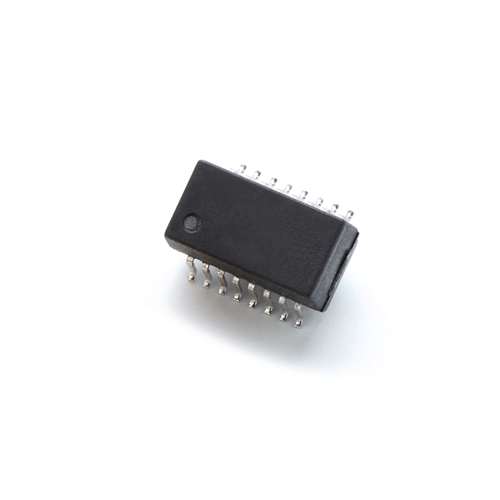

10/100 BASE-TX Single Port Transformer Module

100B-1022X
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1022XT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 7.11 × 6.22 mm
Mounting

SMT
Number of Channels

Single
Configuration RX

C, T
Configuration TX

C, T
Data Rate (Mbps)

100
Package

16-Pin
Insertion Loss MAX (dB)

1
Return Loss (dB)

12, 14, 20
Crosstalk (dB)

35, 40, 45, 48
DM to CM Rejection Ratio (dB) MIN

32, 37, 42
DWV (Vrms)

1500
Operating Temperature

-55°C to +125°C
Storage Temperature

-55°C to +125°C
Finish

Tin/Lead (Sn63/Pb37)
Moisture Sensitivity Level

3
RoHS Compliant

No
Packaging

Bulk
Grade

Mil-Aero
PoE Rating

N/A

The 100B-1022X (100B-1022X) is a 10/100 BASE-TX Single Port Transformer Module from iNRCORE, designed for surface mounting with a 16-Pin package. This module operates with a data rate of 100 Mbps and features C and T configurations for both RX and TX. It boasts an insertion loss maximum of 1 dB, return loss values of 12, 14, and 20 dB, and crosstalk ranging from 35 to 48 dB. With a DM to CM rejection ratio minimum of 32, 37, and 42 dB, and a DWV of 1500 Vrms, it’s built for robust performance. It can operate and be stored in temperatures from -55°C to +125°C, features a Tin/Lead (Sn63/Pb37) finish, and has a Moisture Sensitivity Level of 3. Although not RoHS compliant, it is packaged in bulk and is Mil-Aero grade.
