100B-1022XNL

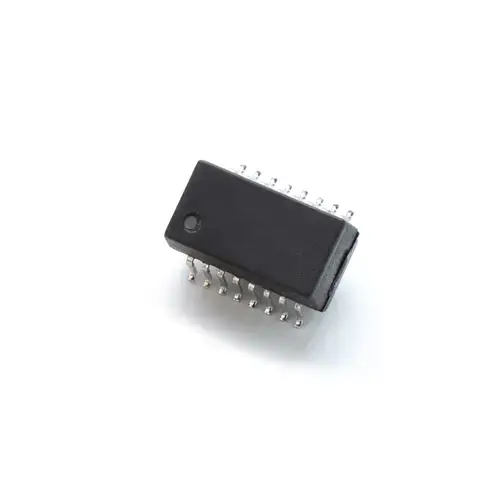

10/100 BASE-TX Single Port Transformer Module

100B-1022XNL
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1022XNLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 7.11 × 6.22 mm
Mounting

SMT
Number of Channels

Single
Configuration RX

C, T
Configuration TX

C, T
Data Rate (Mbps)

100
Package

16-Pin
Insertion Loss MAX (dB)

1
Return Loss (dB)

12, 14, 20
Crosstalk (dB)

35, 40, 45, 48
DM to CM Rejection Ratio (dB) MIN

32, 37, 42
DWV (Vrms)

1500
Operating Temperature

-55°C to +125°C
Storage Temperature

-55°C to +125°C
Finish

Sn100
Moisture Sensitivity Level

3
RoHS Compliant

Yes
Packaging

Bulk
Grade

Mil-Aero
PoE Rating

N/A

The iNRCORE 100B-1022XNL is a 10/100 BASE-TX Single Port Transformer Module designed for Ethernet applications. This SMT package features single channels with C and T configurations for both RX and TX, a data rate of 100 Mbps, and a 16-Pin package. It offers a maximum insertion loss of 1 dB, return loss values of 12, 14, and 20 dB, and crosstalk ranging from 35 to 48 dB. With a DM to CM Rejection Ratio of at least 32, 37, or 42 dB and a DWV of 1500 Vrms, it operates reliably across a wide temperature range of -55°C to +125°C. This RoHS compliant module has a Sn100 finish, a Moisture Sensitivity Level of 3, and is packaged in bulk, making it suitable for Mil-Aero grade applications. 100B-1022XNL

NOTE: Data/Specifications are subject to change without notice.
