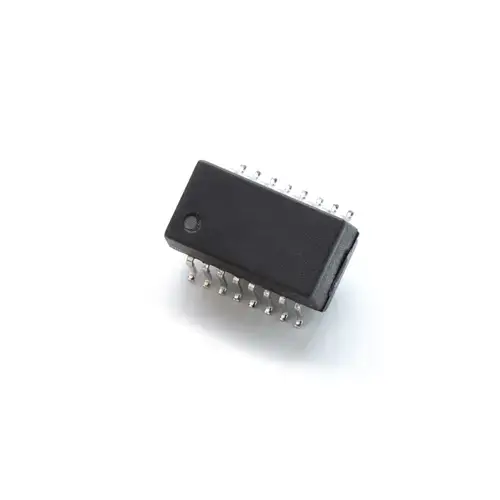

100B-1027XNL

10/100 BASE-TX Single Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1027XNLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 25.65 × 10.16 × 6.05 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

100

Isolation Voltage

1500

Package

16-Pin

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 10/100 BASE-TX Single Port Transformer Module (100B-1027XNL) from iNRCORE is a compact and robust solution for Ethernet signal isolation. This 16-Pin SMT package offers a 100 Mbps data rate and 1500V isolation, operating reliably across a wide temperature range of -55°C to +125°C. Designed with C and T configurations for both RX and TX, and featuring a Sn100 finish, this Mil-Aero grade module is RoHS compliant and suitable for bulk packaging.

NOTE: Data/Specifications are subject to change without notice.
