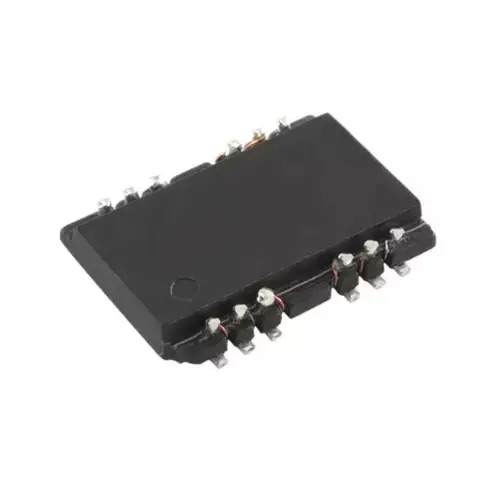

100B-1035NL

10/100 Base-TX Transformer Module

100B-1035NL
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1035NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 9.14 × 2.24 mm
Mounting

SMT
Number of Channels

Dual
Configuration RX

T
Configuration TX

T
Data Rate (Mbps)

10, 100
Package

12-Pin
Insertion Loss MAX (dB)

1.2
Return Loss (dB)

8, 10, 14, 16
Crosstalk (dB)

37, 40, 45
CM Rejection Ratio (dB) MIN

25, 30
DWV (Vrms)

1500
Operating Temperature

-40°C to +85°C
Storage Temperature

-55°C to +125°C
Finish

Sn100
Moisture Sensitivity Level

1
RoHS Compliant

Yes
Packaging

Bulk
Grade

Mil-Aero
PoE Rating

N/A

The iNRCORE 100B-1035NL is a 10/100 Base-TX Transformer Module designed for Ethernet applications. This SMT, dual-channel transformer features T configurations for both RX and TX, supporting data rates of 10 and 100 Mbps. With a compact 12-Pin package and a height of 2.24mm, it offers excellent performance with a maximum insertion loss of 1.2 dB, return loss values of 10, 14, 16, and 8 dB, and crosstalk performance of 37, 40, and 45 dB. It also boasts a minimum CM Rejection Ratio of 25 to 30 dB and a DWV of 1500 Vrms. Engineered for demanding environments, it operates from -40°C to +85°C, with a storage temperature range of -55°C to +125°C, and is RoHS compliant with an Sn100 finish and a Moisture Sensitivity Level of 1. The product is packaged in bulk and is Mil-Aero grade. 100B-1035NL
