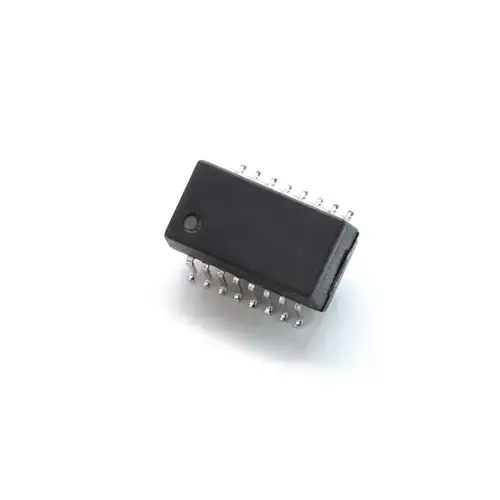

100B-1061

100 Base-T Single & Dual Port Transformers

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1061T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 7.11 × 6.22 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

100

Isolation Voltage

1500

Insertion Loss MAX (dB)

1.2

Power MAX (W)

30

Rated Current (A)

0.6

Package

16-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 100B-1061 transformer provides reliable signal transmission in Ethernet applications. With a data rate of 100 Mbps, it ensures efficient and stable data transfer. It features a 16-Pin package, a Mil-Aero grade, and an operating temperature range of -40°C to +85°C, which makes it suitable for various environments.

NOTE: Data/Specifications are subject to change without notice.
