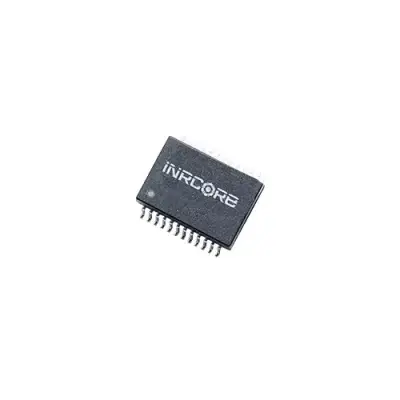

100B-1063XNL

100 Base-T Single & Dual Port Transformers

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1063XNLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 7.11 × 6.22 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

100

Isolation Voltage

1500

Insertion Loss MAX (dB)

1.2

Power MAX (W)

30

Rated Current (A)

0.6

Package

24-Pin

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 100B-1063XNL transformer offers reliable performance for Ethernet applications. With a dual-channel configuration and a data rate of 100 Mbps, it ensures efficient data transfer. Its compact design, with dimensions of 12.95mm in length, 7.11mm in width, and 6.22mm in height, makes it suitable for various system integrations. The transformer is built with high-quality materials, ensuring stable operation within a temperature range of -55°C to +125°C.
