10/100 Base-TX Quad Port Transformer Modules
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 28.45 × 12.19 × 7.11 mm |
|---|---|
| Mounting | SMT |
| Number of Channels | Quad |
| Insertion Loss MAX (dB) | 1.2 |
| Package | 40-Pin |
| Operating Temperature | -40°C to +85°C |
| Finish | Tin/Lead (Sn63/Pb37) |
| Moisture Sensitivity Level | 3 |
| RoHS Compliant | No |
| Packaging | Bulk |
| Grade | Mil-Aero |
| PoE Rating | N/A |

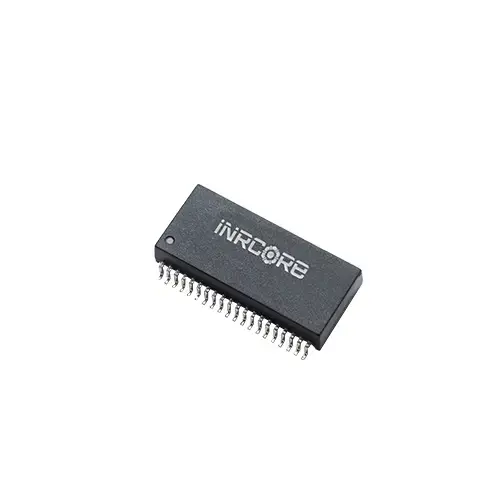

The 100B-4011 10/100 Base-TX Quad Port Transformer Module from iNRCORE is designed for SMT mounting and offers a quad-channel configuration. With an insertion loss of 1.2 dB max and a 40-pin package, this Mil-Aero grade transformer operates between -40°C and +85°C. It features a Tin/Lead (Sn63/Pb37) finish, has a Moisture Sensitivity Level of 3, and is packaged in bulk.
NOTE: Data/Specifications are subject to change without notice.
