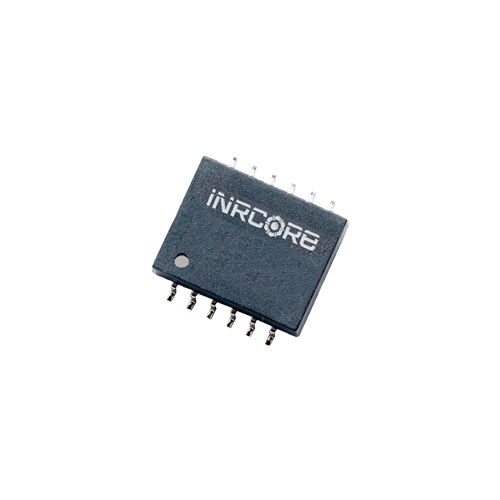

100B-4016NL

10/100 Base-TX Single Port Transformer Modules

100B-4016NL
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-4016NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 15.24 × 11.94 × 5.08 mm
Mounting

SMT
Number of Channels

Single
Configuration RX

C, T
Configuration TX

C, T
Data Rate (Mbps)

100
Package

12-Pin
Insertion Loss MAX (dB)

1.1
Return Loss (dB)

10, 12, 14, 18
Crosstalk (dB)

35, 37, 43, 45
DM to CM Rejection Ratio (dB) MIN

30, 35, 45
CM Rejection Ratio (dB) MIN

28, 35, 42
Operating Temperature

-40°C to +85°C
Finish

Sn100
Moisture Sensitivity Level

3
RoHS Compliant

Yes
Packaging

Bulk
Grade

Mil-Aero
PoE Rating

N/A

The 100B-4016NL is a 10/100 Base-TX Single Port Transformer Module from iNRCORE, designed for signal and Ethernet transformer applications. This SMT package, measuring 15.24mm in length, 11.94mm in width, and 5.08mm in height, features a single channel and supports both C and T configurations for RX and TX. It offers a data rate of 100 Mbps, with an insertion loss max of 1.1 dB, return loss values of 10, 12, 14, and 18 dB, and crosstalk of 35, 37, 43, and 45 dB. It also boasts a DM to CM rejection ratio MIN of 30, 35, and 45 dB, and a CM rejection ratio MIN of 28, 35, and 42 dB. Operating within a temperature range of -40°C to +85°C, this RoHS compliant module comes with a Sn100 finish, a Moisture Sensitivity Level of 3, and is available in bulk packaging, meeting Mil-Aero grade standards.
