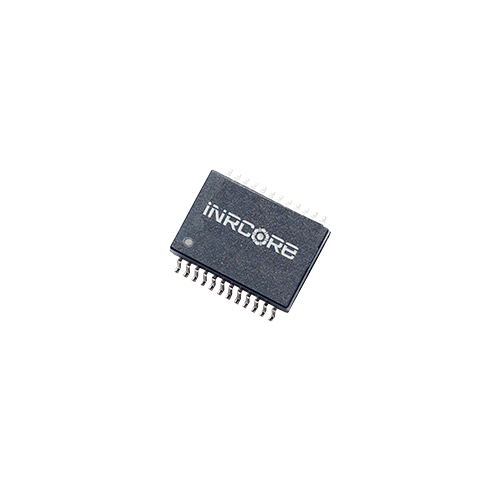

10G Base-T Transformer Module
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 13.89 × 15.37 × 6.48 mm |
|---|---|
| Mounting | SMT |
| Number of Channels | Single |
| Configuration RX | C, T |
| Configuration TX | C, T |
| Data Rate (Mbps) | 10000 |
| Isolation Voltage | 1500 |
| Package | 24-Pin |
| Operating Temperature | -40°C to +125°C |
| Storage Temperature | -55°C to +125°C |
| Finish | Tin/Lead (Sn63/Pb37) |
| Moisture Sensitivity Level | 3 |
| RoHS Compliant | No |
| Packaging | Bulk |
| Grade | Mil-Aero |
| PoE Rating | N/A |
The 10G Base-T Transformer Module from iNRCORE offers reliable performance in Ethernet transformer applications. Its compact design, with dimensions of 13.89mm in length, 15.37mm in width, and 6.48mm in height, makes it suitable for various installations. This module supports a 10000 Mbps data rate, and its robust construction, including a -40°C to +125°C operating temperature range and Tin/Lead (Sn63/Pb37) finish, ensures durability.
NOTE: Data/Specifications are subject to change without notice.
