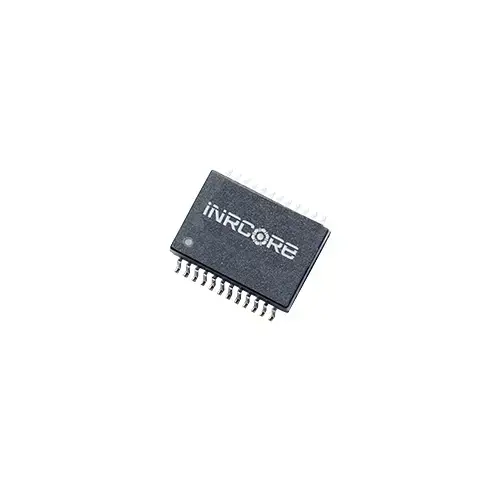

10GB-6012NL

10G Base-T PoE++ Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 10GB-6012NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 18.42 × 12.98 × 10.41 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

10000

Isolation Voltage

1500

Rated Current (A)

0.6

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

PoE++

The 10GB-6012NL module is a 10G Base-T PoE++ transformer, designed for use in Ethernet applications. This module supports SMT mounting and features a 24-Pin package, with an operating temperature range of -40°C to +85°C. The product offers a high data rate of 10000 Mbps and is RoHS compliant, providing a reliable solution for various networking needs.

NOTE: Data/Specifications are subject to change without notice.
