DTLC1553-5

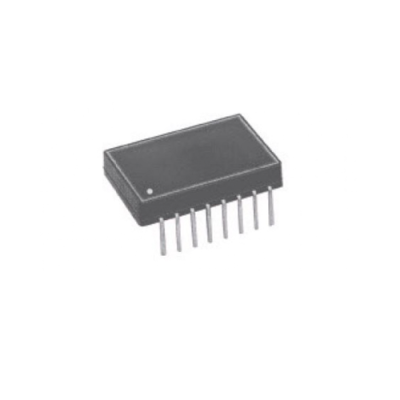

Low Profile Dual THT MIL-STD-1553 Interface Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. DTLC1553-5T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 5 g
Dimensions 23.62 × 16 × 3.94 mm
Mounting

THT

Number of Channels

Dual

Terminals

1-3:15-14 / 5-7:11-10, 1-3:16-13 / 5-7:12-9

Turns Ratio

1.0CT: 2.12CT / 1.0CT: 1.5CT

DCR MAX (mΩ)

1, 3.5

Impedance (Ω)

4000

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Package

Flat Pack

Operating Temperature

0°C to +70°C

Moisture Sensitivity Level

1

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

COTS

Qualified Products List

No

RoHS Compliant

No

The DTLC1553-5 is a low-profile, dual THT MIL-STD-1553 interface transformer, designed for reliable signal transmission in demanding environments. This component offers a compact form factor with a focus on quality and performance, ensuring signal integrity. Its features include a wide operating frequency range, and robust construction, making it suitable for applications requiring dependable data communication.
