GLC1553-1

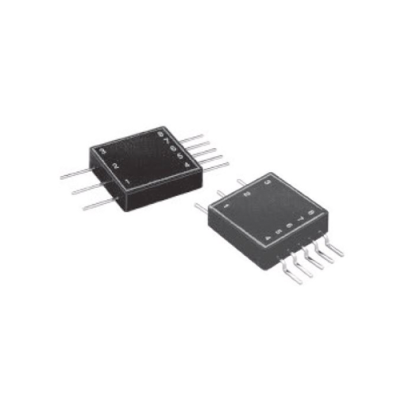

Low Profile Dual SMT MIL-STD-1553 Interface Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. GLC1553-1T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 5 g
Dimensions 16 × 16 × 0.155 mm
Mounting

SMT

Number of Channels

Single

Terminals

1-3:4-8 / 1-3:5-7

Turns Ratio

1.0CT: 1.0CT / 1.0CT: .707CT

DCR MAX (mΩ)

3

Impedance (Ω)

4000

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Package

Gull-Wing

Operating Temperature

0°C to +70°C

Moisture Sensitivity Level

3

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

COTS

Qualified Products List

No

RoHS Compliant

No

The GLC1553-1 is a low-profile, dual SMT MIL-STD-1553 interface transformer, ideal for applications requiring reliable signal transmission. With a compact design, it offers a single-channel solution with a turns ratio of 1.0CT: 1.0CT / 1.0CT: .707CT. It operates within a frequency range of 75 kHz to 1 MHz and features a high common-mode rejection of 45 dB minimum, ensuring efficient performance. The transformer is built with a focus on quality and reliability, operating within a temperature range of 0°C to +70°C.

NOTE: Data/Specifications are subject to change without notice.
