QT1553-82

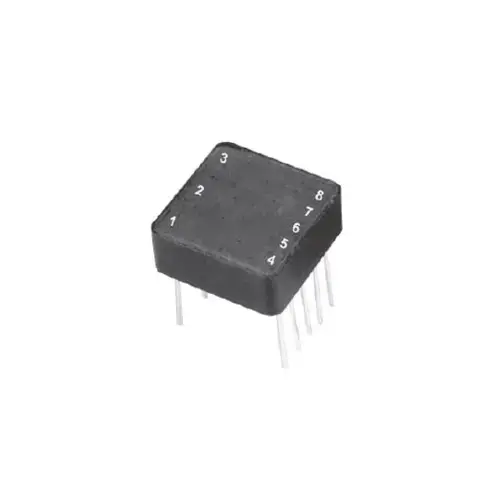

Dual Ratio QPL THT MIL-STD-1553 Pulse Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. QT1553-82T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 5 g
Dimensions 15.86 × 15.86 × 6.35 mm
Mounting

THT

Number of Channels

Single

Terminals

1-3:4-8 / 1:3:5-7

Turns Ratio

1.4CT: 1CT / 2CT: 1CT

DCR MAX (mΩ)

3, 3.5

Impedance (Ω)

7200

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Package

G

Operating Temperature

-55°C to +130°C

Storage Temperature

-55°C to +130°C

Moisture Sensitivity Level

1

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

QPL

Qualified Products List

Yes

RoHS Compliant

No

The Dual Ratio QPL THT MIL-STD-1553 Pulse Transformer offers reliable signal transmission in demanding environments. Its compact design, with a weight of only 5 grams, and wide operating temperature range from -55°C to +130°C, makes it suitable for various applications. The transformer ensures signal integrity with a 7200-ohm impedance, and is built with high-quality materials, including Tin/Lead (Sn63/Pb37) finish, and is compliant with RoHS standards.
