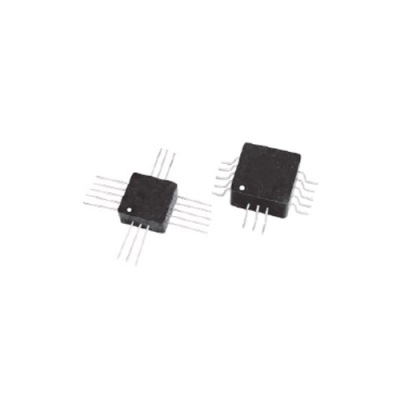

SGQN1553-2

Stacked Dual SMT MIL-STD-1553 Interface Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. SGQN1553-2T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 5 g
Dimensions 16 × 16 × 8.64 mm
Mounting

SMT

Number of Channels

Dual

Terminals

1-3:4-8 / 11-13:14-18 ; 1-3:5-7 / 11-13:15-17

Turns Ratio

1.40CT: 1.0CT / 2.0CT: 1.0CT

DCR MAX (mΩ)

3, 3.5

Impedance (Ω)

4000

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Package

Gull-Wing

Operating Temperature

-40°C to +85°C

Moisture Sensitivity Level

3

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

COTS

Qualified Products List

No

RoHS Compliant

No

The SGQN1553-2 is a stacked dual SMT MIL-STD-1553 interface transformer, ideal for signal applications. This component offers dual channels and features SMT mounting, a turns ratio of 1.40CT:1.0CT / 2.0CT:1.0CT, and an operating frequency range of 75 kHz to 1 MHz. It is designed with a focus on reliability and performance, with a package designed as Gull-Wing and a Tin/Lead (Sn63/Pb37) finish.

NOTE: Data/Specifications are subject to change without notice.
