TL1553-1

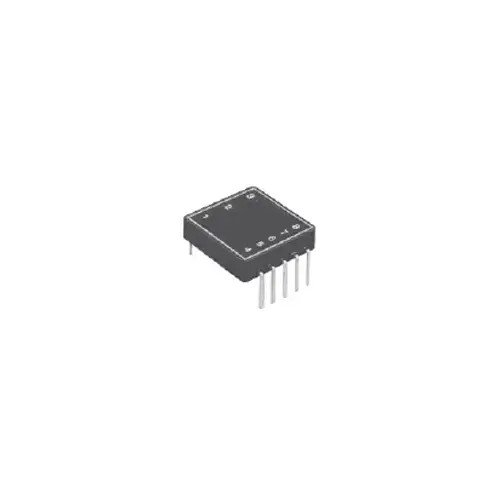

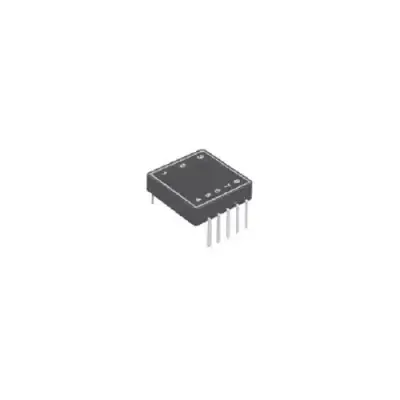

Low Profile THT MIL-STD-1553 Interface Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. TL1553-1T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 16 × 16 × 3.94 mm
Mounting

THT

Terminals

1-3:4-8 / 1-3:5-7

Turns Ratio

1CT:1CT / 1CT:0.707CT

DCR MAX (mΩ)

3

Impedance (Ω)

4000

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Operating Temperature

-55°C to +125°C

Moisture Sensitivity Level

1

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

COTS

Qualified Products List

No

RoHS Compliant

No
