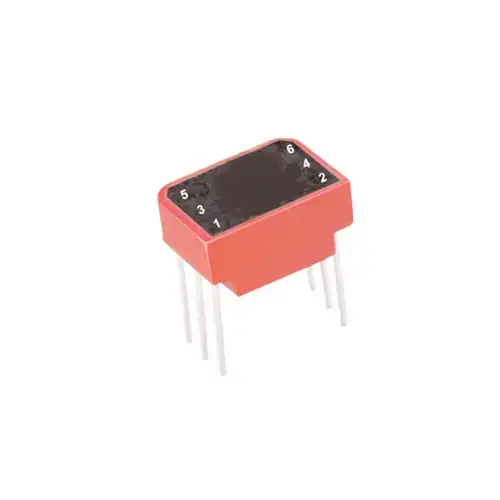

X-1584NL

THT 1553 Single Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1584NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.7 × 8.89 × 4.37 mm
Mounting

THT

Number of Channels

Single

Terminals

1-5:6-2

Turns Ratio

1CT:1.79CT

DCR MAX (mΩ)

0.9, 2.5

Impedance (Ω)

3000

Droop MAX

20%

Overshoot (V)

±1V MAX

CMR MIN (dB)

45

Operating Frequency (MHz)

75 kHz to 1 MHz

IR MIN (MΩ)

10000

IR @

250 Vdc

DWV (Vrms)

100

Operating Temperature

-55°C to +130°C

Moisture Sensitivity Level

1

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

Grade

COTS

Qualified Products List

No

RoHS Compliant

Yes

The THT 1553 Single Transformer, manufactured by iNRCORE, offers a compact and reliable solution for signal transmission in MIL-STD-1553 applications. Featuring a turns ratio of 1CT:1.79CT and a wide operating frequency range, this transformer ensures efficient performance. Its design incorporates key features such as a 10000 MΩ IR MIN and a 100 Vrms DWV, making it a dependable component for various electronic systems.

NOTE: Data/Specifications are subject to change without notice.
