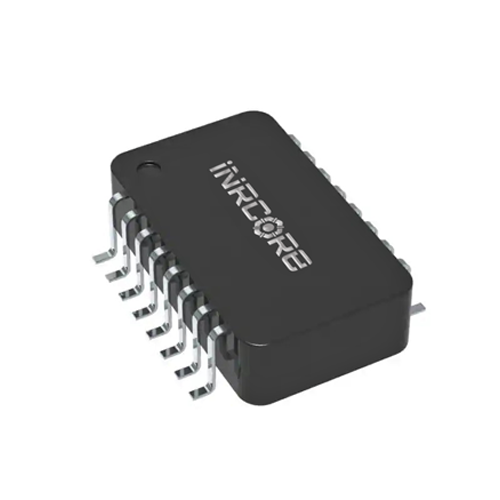

TM1485HVB2

Copperhead Series Fibre Channel Transceiver Line Interface Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. TM1485HVB2T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 7.62 × 12.7 × 6.35 mm
Mounting

SMT

Package

Gull-Wing Half DIP 16-Pin

Construction Type

SMPTE

Input Data Voltage MIN (V)

1.35

Input Data Voltage MAX (V)

1.88

Input Voltage Diff MIN (mV)

150

Input Voltage Diff TYP (mV)

80000%

Input Voltage Diff MAX (mV)

1200

Data Rate (Mbps)

1485

Transmit Jitter TYP (pS)

1.00E+03

Transmit Jitter MAX (pS)

2000

Operating Temperature

-55°C to +125°C

RoHS Compliant

No

Packaging

Bulk

Grade

Industrial

The TM1485HVB2, a Copperhead Series Fibre Channel Transceiver Line Interface Module, offers a robust solution for high-speed data transmission. With a data rate of 1485 Mbps and SMPTE construction, it ensures reliable performance in demanding applications. The module’s design incorporates features like a -55°C to +125°C operating temperature range, SMT mounting, and industrial grade, highlighting its suitability for diverse environments.

NOTE: Data/Specifications are subject to change without notice.
